AS Series
ASM 520
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 120 mm
AS 730
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 120 mm
AS 1150
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 120 mm
AS 1175
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 130 mm
AS 1875
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 130 mm

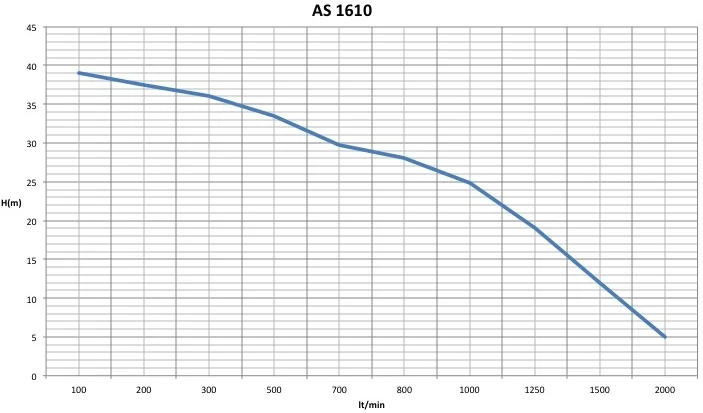

AS 1610
For the drainage of construction sites, trench ducts, and underground passages. Suitable to pump water out from cellars, garages and basements.Disposal of moderately heavy water containing some abrasive material.
OPERATING CONDITIONS
Liquid temperature 35°C (according to EN 60335-2-41) up to 50°C (for other uses)
Submersion depth 20 mt (with a cable of the appropriate length)
Total suction lift up to 7 mt
Grain size inlet Ø 10,5 mm
Min. suction level 130 mm
